2023 Sun Tracker Party Barge 18 DLX - TRKR0049

Rigged with 75HP Mercury

The PARTY BARGE 18 DLX is a great way for families to leave everyday hassles on land and just spend quality time together on the water. No to-do lists, no traffic jams, no chores, no distractions.

Onboard you will find three lounge seats with spacious rotomolded storage underneath with room for water toys, safety equipment, snacks, or other items to make your perfect day on the water. There is also space below the console for a cooler of drinks and snacks or more storage if needed.

For peace of mind, all gates open inward for maximum safety, and fence height allows young boaters to stay safe while having maximum fun.

The full-width swim platform and new four-step telescoping boarding ladder and grab rails ensure repeat cannonballs and dives.

Easy-adjust QUICKLIFT® Bimini top lets you escape from the sun when you are ready for some shade and provides nice lighting at night with LED courtesy lights.

Key Features

Bimini top: The 9' Bimini top features LED courtesy lights.

Port gate: The side gate is wide enough to allow wheelchair access as well.

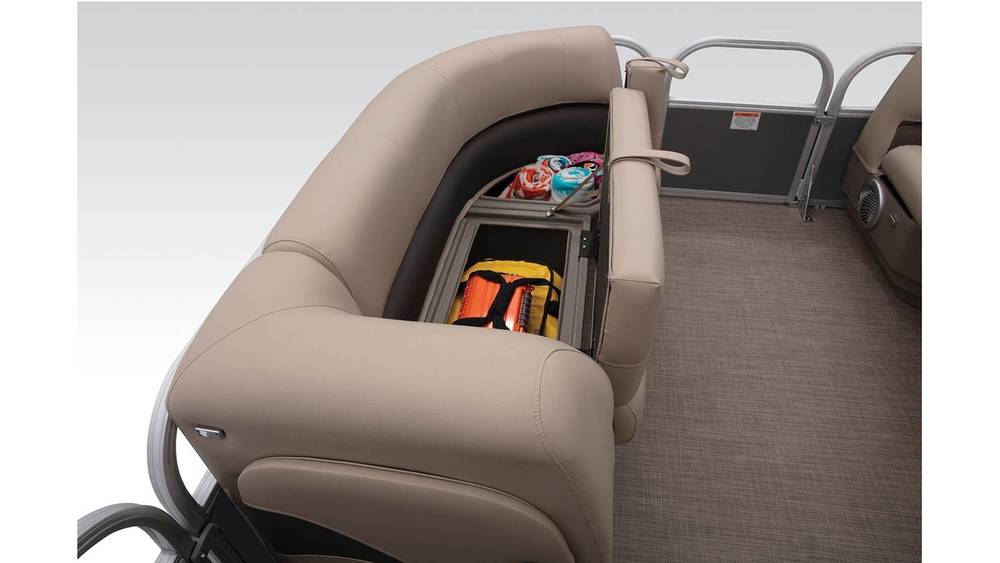

Underseat storage: All the underseat storage compartments are rotomolded for maximum durability.

Specifications

Length: 20 ft. (6.1 m)

Deck Length: 17 ft. 8 in. (5.38 m)

Deck Width: 8 ft. 2 in. (2.49 m)

Max. Recommended HP: 75 HP

Fuel Capacity: 32.1 gal. (121.5 L)

Pontoon Log Length: 18 ft. 4 in. (5.59 m)

Pontoon Log Diameter: 24 in. (60.96 cm)

Pontoon Log Material: 0.080 5052 marine alloy

Max. Person Capacity: 9 persons

Max. Person Weight: 1220 lb. (553.38 kg)

Max. Person, Motor & Gear Weight: 1750 lb. (793.79 kg)

Interior Depth: 26 in. (66.04 cm)

Average Dry Weight: 1450 lb. (657.71 kg)

Average Package Weight: 2965 lb. (1344.9 kg)

Package Height: 9 ft. (2.74 m)

Package Width: 8 ft. 2 in. (2.49 m)

Towing Length: 27 ft. 3 in. (8.31 m)

Storage Length: 27 ft. 3 in. (8.31 m)

Comfort, Convenience & Peace of Mind

10+LIFE™ Limited Lifetime Warranty

NMMA® certified

9' (2.74 m) Bimini top w/LED courtesy lights, protective boot & accepts optional drop-down changing curtain (Bimini top will be Black w/Black or Charcoal fencing colors & will be Sand w/Caribou, Copper Red or Indigo Blue fencing colors)

QUICKLIFT® Bimini top deployment system, allowing 1 person to effortlessly extend the canopy alone

Storage pockets in Bimini top

Gate latches & heavy-duty hinges that open inward

Aft squared gate

Port & starboard LED navigation lights

Bimini-mounted anchor/navigation light

Four 4.5" (11.43 cm) fold-down mooring cleats

Motor-stop safety lanyard

Fire extinguisher

Horn

Console

Sport steering wheel

4:2 ratio no-feedback steering for responsive, easy turning

Tinted windscreen

Below-console cooler/storage space

Small items tray

Drink holders

Built-in footrest w/non-skid pad

AM/FM Bluetooth®-capable stereo head unit w/integrated low voltage alarm & 2 upholstery speakers

Illuminated tachometer, trim & fuel gauges

Lighted rocker switches

Ergonomically positioned Mercury® binnacle control box w/trim

12V outlet

Dark console color

Interior

Bow port couch w/underseat storage & armrest w/drink holder

Large bow starboard couch w/underseat storage

Aft L-lounge w/underseat storage

Adjustable helm bucket seat w/swivel

Aft port rear-facing double lounge w/underseat storage & removable armrest

Full-width aft swim deck

Woven 16-oz. (.45 kg) marine-grade flooring throughout

Marine-grade, UV-resistant, top-coated upholstery w/26-oz. (.74 kg) base material & multiple densities of foam

Movable drink holder/armrest

Performance

Nose cone & motor pod wave/spray deflectors for a drier ride

Factory-matched aluminum propeller

Construction & Exterior

Color: Charcoal or NEW Copper Red fencing

Plasma & laser cutters & robotic welding help ensure precise fit & finish throughout

Rotomolded couches & backs for furniture w/Diamante Pepper accent

Heavy-duty bow U-channel reinforcement behind deck trim

24" (60.96 cm) diameter high-buoyancy multichambered pontoons w/internal bracing for additional strength

High-sheen fence finish for long-lasting good looks

1-1/4" (3.18 cm), .090" (.23 cm) thick anodized aluminum fence rails w/decorative styling

Reinforced bow structure

Extruded anodized aluminum deck edging w/polished aft corner covers

All-welded, all-aluminum extended motor pod w/built-in EPA-compliant fuel system

Stainless or coated corrosion-resistant fasteners

Pressure-treated 3/4" (1.91 cm) deck w/Limited Lifetime Warranty

Full-width heavy-duty extruded Z-bar deck supports that are thru-bolted to M-brackets

Elevated fence panels for deck drainage & ventilation

Sound- & vibration-deadening fence insulation for a quiet ride

Box-beam all-aluminum transom for strength & longevity

Port wheelchair-access gate

Rear boarding platform w/NEW 4-step telescoping boarding ladder & grab rails

Electrical

Interior courtesy lighting

Easy-access marine-grade automotive-style fuse panel w/latching fuse block door

Protective abrasion-resistant wire wrap

Water-resistant connectors

Functional Options

Underpinning kit (does not include dealer installation)

Cover Options

Snapless mooring cover—Black

Trailer Options

Single-axle trailer w/spare tire (additional freight charge applies for standalone trailer purchase)

Single-axle trailer w/brakes & spare tire (additional freight charge applies for standalone trailer purchase)

Mercury® Motor Options

9.9 ELPT FourStroke Command Thrust ProKicker

20 ELPT FourStroke

25 ELPT FourStroke

60 ELPT FourStroke Command Thrust

75 ELPT FourStroke
