2023 Sun Tracker Sportfish 20 DLX

The all-new SPORTFISH™ 20 DLX is a versatile fishin' and fun machine made with the best features to make the most of days spent casting or cruising.

A bow couch with STOW MORE™ seating and underseat storage complement the two fishing seats and the aft L-lounge for maximum space. Vertical rod holders at the rear are adjacent to tackle storage to keep gear organized. When the bite slows, crank up the Bluetooth® stereo and open the 10' powered Bimini top for maximum relaxation.

Specifications

Length: 21 ft. 11 in. (6.68 m)

Deck Length: 19 ft. 10 in. (6.05 m)

Deck Width: 8 ft. 6 in. (2.59 m)

Max. Recommended HP: 90 HP

Fuel Capacity: 32.1 gal. (121.5 L)

Pontoon Log Length: 20 ft. 4 in. (6.2 m)

Pontoon Log Diameter: 24 in. (60.96 cm)

Pontoon Log Material: 0.080 5052 marine alloy

Max. Person Capacity: 10 persons

Max. Person Weight: 1370 lb. (621.42 kg)

Max. Person, Motor & Gear Weight: 1900 lb. (861.83 kg)

Interior Depth: 24 in. (60.96 cm)

Average Dry Weight: 1940 lb. (879.97 kg)

Average Package Weight: 3605 lb. (1635.2 kg)

Package Height: 8 ft. 6 in. (2.59 m)

Package Width: 8 ft. 6 in. (2.59 m)

Towing Length: 30 ft. 4 in. (9.25 m)

Storage Length: 30 ft. 4 in. (9.25 m)

Comfort, Convenience & Peace of Mind

10+LIFE™ Limited Lifetime Warranty

NMMA® certified

10' (3.05 m) SureShade® powered Bimini top w/push-button stow & deploy, LED courtesy lights & protective boot (Bimini top will be Black w/Black or Charcoal fencing colors & will be Sand w/Caribou, Copper Red or Indigo Blue fencing colors)

Storage pockets in Bimini top

Nylon gate latches & heavy-duty hinges that open inward

Port & starboard LED navigation lights

Bimini-mounted anchor/navigation light

Four 4.5" (11.43 cm) fold-down mooring cleats

Motor-stop safety lanyard

Fire extinguisher

Horn

Livewell System

Aft port 16-gal. (60.57 L) aerated livewell w/removable bait bucket & shutoff valve

Aft rotomolded compartment w/8-gal. (30.28 L) aerated livewell w/shutoff valve, drink holder, rod holder, battery storage & composite lid w/ruler

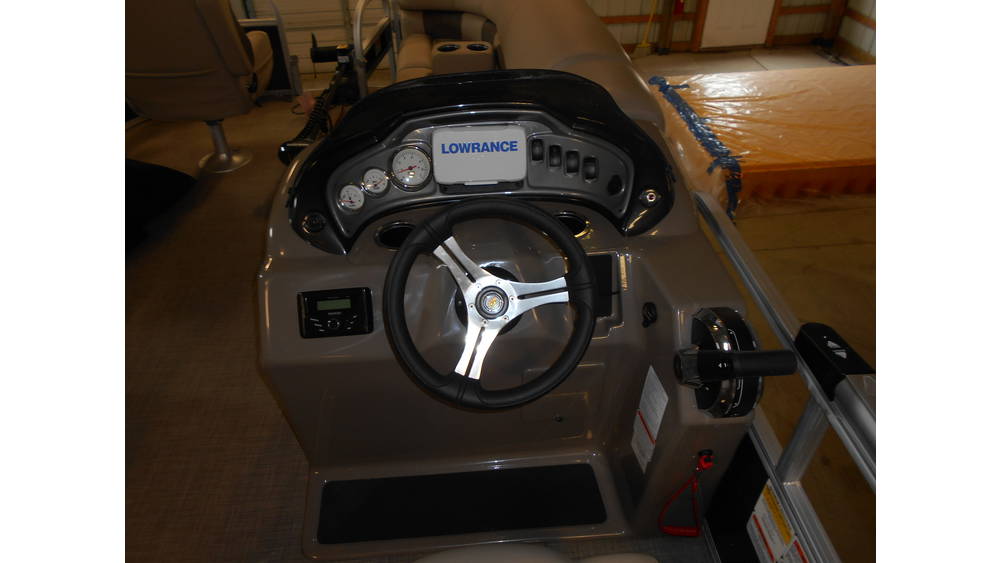

Console

Deluxe soft-touch sport steering wheel

4:2 ratio no-feedback steering for responsive, easy turning

Wraparound sport console shroud & tinted, removable windscreen

Below-console cooler/storage space w/door & integrated pouch

Small items tray

Drink holders

Built-in footrest w/non-skid pad

AM/FM Bluetooth®-capable stereo head unit w/integrated low voltage alarm & 2 upholstery speakers

USB/3.5 mm auxiliary input ports on console for direct stereo connection

Tachometer, trim meter/speedometer & fuel & hour gauges

Lighted rocker switches

Ergonomically positioned Mercury® binnacle control box w/trim

24V outlet

Dark console color

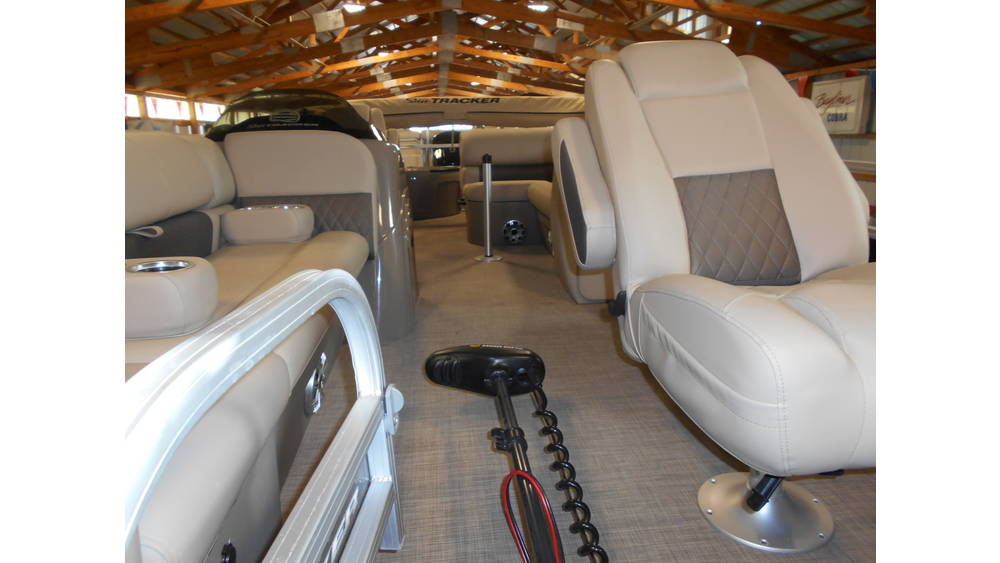

Interior

The patented STOW MORE™ system features an added compartment in the seat back for increased storage

Bow port, fixed deluxe high-back swiveling bucket seat, reclining & w/self-leveling arms

Clam-shell fishing chairs constructed w/all-composite seat frames w/heavy-duty 2-3/8" (6 cm) diameter pedestals

Bow starboard couch w/STOW MORE™ system & underseat storage

Aft L-lounge w/STOW MORE™ system, underseat storage, lockable storage compartment & arm

High-back swiveling helm bucket seat, reclining & w/self-leveling arms

Rear-facing tackle storage in aft L-lounge

Aft rail-mounted vertical rod & tool holders

Aft fishing deck w/1 removable folding fishing chair

Woven 16-oz. (.45 kg) marine-grade flooring throughout

Marine-grade, UV-resistant, top-coated upholstery w/26-oz. (.74 kg) base material & multiple densities of foam

2 movable drink holders/armrests

Removable table w/padded insert, 4 molded-in drink holders & 1 pedestal base location

Performance

Nose cone & motor pod wave/spray deflectors for a drier ride

Factory-matched aluminum propeller

Construction & Exterior

Color: Black or Caribou fencing

Plasma & laser cutters & robotic welding help ensure precise fit & finish throughout

Rotomolded couches & backs for furniture w/Diamante Pepper accent

Fishing seats w/Diamante Pepper accent

Heavy-duty bow U-channel reinforcement behind deck trim

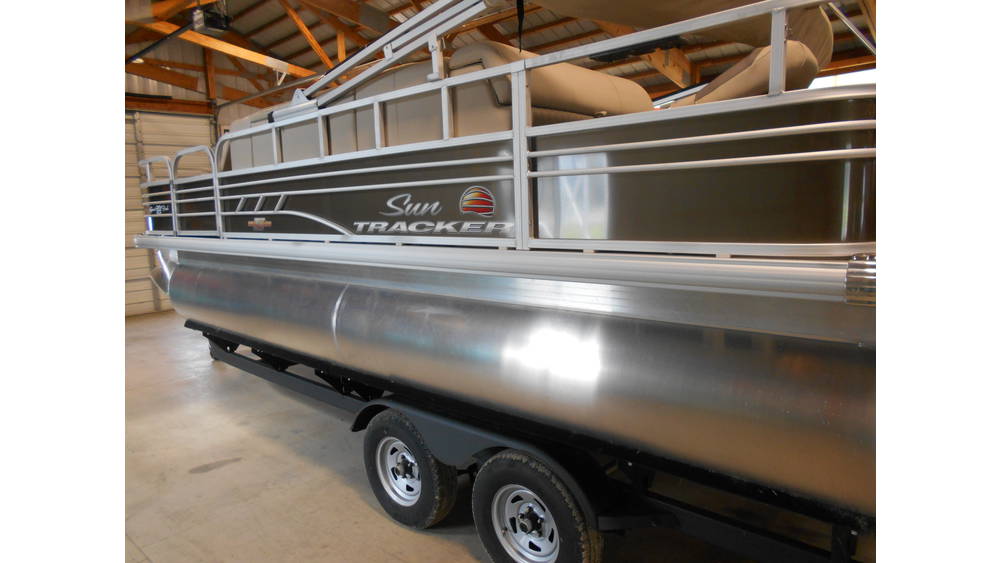

24" (60.96 cm) diameter high-buoyancy multichambered pontoons w/internal bracing for additional strength

1-piece full-length M-bracket deck supports

Protective exoskeleton rail & panel system for durability & a quieter ride

High-sheen fence finish for long-lasting good looks

1-1/4" (3.18 cm), .090" (.23 cm) thick anodized aluminum fence rails w/decorative styling

Extruded anodized aluminum deck edging w/polished aft corner covers

All-welded, all-aluminum extended motor pod w/built-in EPA-compliant fuel system

Stainless or coated corrosion-resistant fasteners

Pressure-treated 3/4" (1.91 cm) deck w/Limited Lifetime Warranty

Full-width heavy-duty extruded Z-bar deck supports that are thru-bolted to M-brackets

Elevated fence panels for deck drainage & ventilation

Sound- & vibration-deadening fence insulation for a quiet ride

Box-beam all-aluminum transom for strength & longevity

Port wheelchair-access gate

Rear boarding platform w/4-step telescoping boarding ladder & grab rails

Electrical

Interior courtesy lighting

Easy-access marine-grade automotive-style fuse panel w/latching fuse block door

Protective abrasion-resistant wire wrap

Water-resistant connectors

Fishing Package Options

Fishing package w/Lowrance® HOOK Reveal 5x fishfinder w/SplitShot™ & GPS & Minn Kota® PowerDrive™ 24V, 70-lb. (31.75 kg) thrust, 54" (1.37 m) shaft, remote-control trolling motor w/i-Pilot® & quick-release bracket (does not include trolling battery & dealer installation)

Functional Options

Ski tower (does not include dealer installation)

Underpinning kit (does not include dealer installation)

Cover Options

Snapless mooring cover—Black

Trailer Options

Tandem-axle trailer w/brakes on both axles & spare tire (additional freight charge applies for standalone trailer purchase)

Mercury® Motor Options

9.9 ELPT FourStroke Command Thrust ProKicker

20 ELPT FourStroke

60 ELPT FourStroke Command Thrust

90 ELPT FourStroke Command Thrust

NOTES:

*Previous Model Year Images Shown
